Class IIa CE Medical Device · MDR (EU) 2017/745
The IRT-384 Tablet is a portable thermal imaging tablet designed for daily patient screening. The high-resolution thermal camera quickly highlights temperature differences, allowing intuitive, instant analysis.
Regulotary status
Based on the latest clinical evaluation report, the product provides new insights into the analysis of diabetic foot ulcers, pressure injuries, vascular disorders, arthritis, skin cancer, and autonomic dysfunction in patients.
These insights not only aid clinicians in making sound clinical decisions but may also empower patients with a greater awareness of their conditions, enabling them to actively participate in their own care.
Thermal imaging supports clinical assessment and monitoring. It does not by itself diagnose disease; findings are always interpreted by a healthcare professional.
Europe, CE
Class IIa, MDR (EU) 2017/745
United States, FDA
FDA Cleared
United Kingdom
MHRA Registered
Dual capture

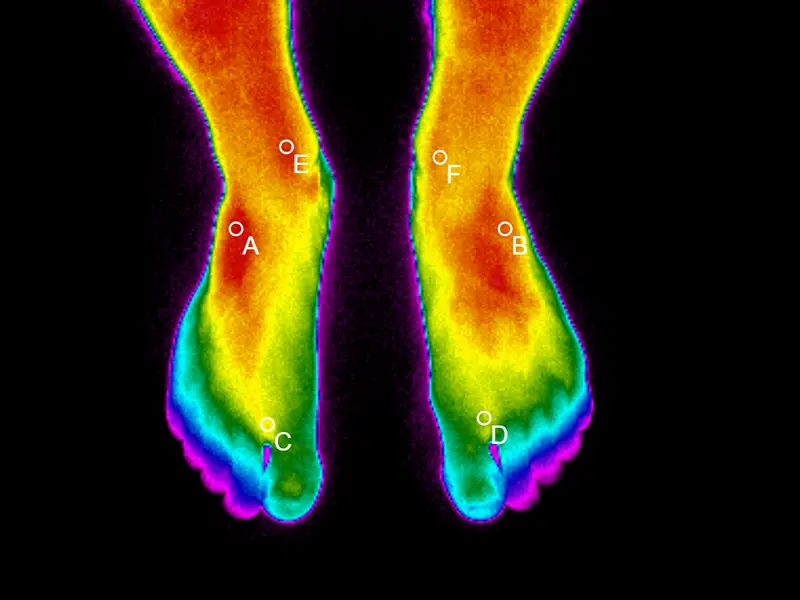

The Thermidas IRT-384 Tablet takes both thermal and visual images simultaneously. While the thermal imaging provides all the data for analysis, the regular photo allows visual assessment even later on.
VistaClinic software
The included VistaClinic software is designed from the ground up, making the IRT-384 Tablet easy and quick to use. Draw regions of interest, read the values, and store the study to the cloud without moving to a desktop.
Regions of interest. Mark a site once and read minimum, maximum and mean temperature within it.
Four sessions side by side. Compare up to four studies from different dates to read the direction of travel.
Shared review. A community nurse or podiatrist can share live thermal and visual images with the hospital clinician during the visit.
01 • Before
Assess the location and extent of the problem area. Observe changes before visible symptoms appear.
03 • During
Monitor and track the effectiveness of treatment and recovery progress.
03 • After
Monitor the results of training and the progress of rehabilitation using thermal imaging.
Take it everywhere with you
One device to capture and analyze thermal images.
Works at the bedside, in the clinic room, and on a home visit with the same protocol.
Podiatry and diabetes clinics
Routine foot screening within the existing appointment.
Wound care and care homes
Repeatable pressure-area checks that leave a dated record.
Physiotherapy and sports
Localise strain and follow the load response session to session.
Get started
The IRT-384 Tablet is a high-quality thermal imaging solution for locating problem areas and monitoring the effectiveness of treatment.
Thermal imaging also supports the client’s understanding of rehabilitation progress by providing clear, objective information on the effects of treatment.
You can also email or call us:
info@thermidas.fi
+358 20 794 0961
Technical specifications
| Specification | Value |
|---|---|
| Tablet operating system | Android |
| Thermography software | Thermidas VistaClinic |
| Display size and resolution | 10.1″ and 1920×1200 px |
| RAM and ROM | 4 GB and 64 GB |
| CPU | Snapdragon SM6375 |
| Connectivity | WiFi |
| Camera thermal resolution | 384 × 288 pixels |
| Thermal sensitivity (NETD) | < 0.05 °C @ 30 °C |
| Accuracy | ± 2 °C |
| Thermal camera field of view | 41.5° × 31.1° |
| Minimum focus distance | 0.5 m |
| Weight | Approx. 1.3 kg |
